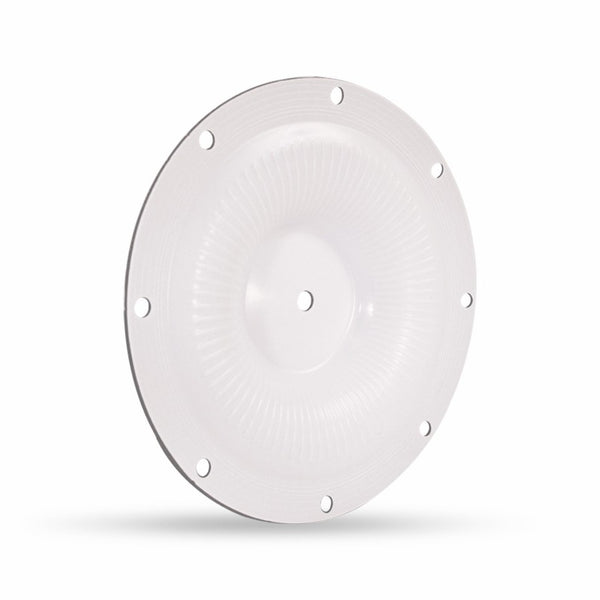

Garlock ONE-UP® Neoprene Pump Diaphragm for 2" YAMADA NDP-50, NDP-50FAN
$1,483.85 $2,018.44
Secure Payments
Bulk Packaging
Trusted Support
Garlock Part: PA0063
Equipment Compatibility: 2" YAMADA NDP-50, NDP-50FAN
Material: Contains GORE® ePTFE sheet bonded to a fabric reinforced rubber backing for extraordinary strength and cycle life increase that is magnitudes higher than competitive diaphragms.
Air Side Material : Neoprene
Media Side Mater: PTFE
Center Hole Diameter: 0.60"
Outside Diameter: 12.75"
Bolt Hole Quantity: 8
Bolt Hole Diameter: 0.50"
Bolt Circle Diameter: 11.80"
Max Temperature: 200° F/93° C
Min Temperature: -10° F/-23° C
Compliances: RoHS Compliant
***Usually Ships in 1-3 Business Days
