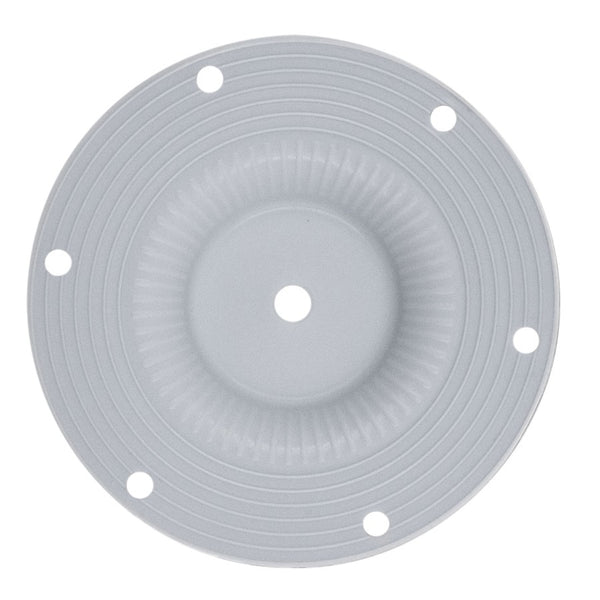

Garlock Part: PA0060
Equipment Compatibility: 3/4" YAMADA NDP-20
Material: Contains GORE® ePTFE sheet bonded to a fabric reinforced rubber backing for extraordinary strength and cycle life increase that is magnitudes higher than competitive diaphragms.
Air Side Material : Neoprene
Media Side Mater: PTFE
Center Hole Diameter: 0.50"
Outside Diameter: 7.10"
Bolt Hole Quantity: 6
Bolt Hole Diameter: 0.37"
Bolt Circle Diameter: 6.30"
Max Temperature: 200° F/93° C
Min Temperature: -10° F/-23° C
Compliances: RoHS Compliant
***Usually Ships in 1-3 Business Days
