2" Full Face Flange Gasket (w/4 Bolt Holes) - 150 Lbs. - 1/16" Thick Garlock GRAPH-LOCK® Style 3125-SS-HT Flexible Graphite Gasket 316SS Foil High Temperature Version
$17.50
SKU: ANSI FF2G3525SSHT.06
Secure Payments
Bulk Packaging
Trusted Support
Nominal Pipe Size: 2"
Pound Class: ASME B16.5 Class 150 Lbs.

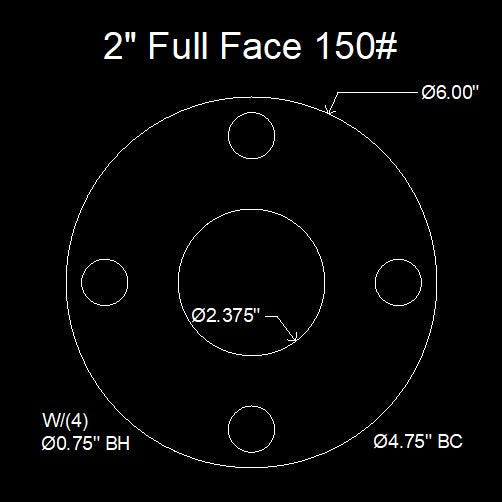

ANSI Standard Dimensions: 6" OD x 2-3/8" ID - (4) 3/4" BH on 4-3/4" BC
Thickness: 0.060" 1.5mm (1/16" Nominal)
Material: GRAPH-LOCK® Style 3125-SS-HT (High Temperature) Flexible Graphite Gasket Sheet, 316SS (Stainless Steel) Foil, Branded, 0.060 Inch
Composition: Graphite with 316SS Foil Insert
Compliances: REACH Compliant
Temperature Range: -450°F - 1000°F (-268°C - 538°C)
Color: Black
