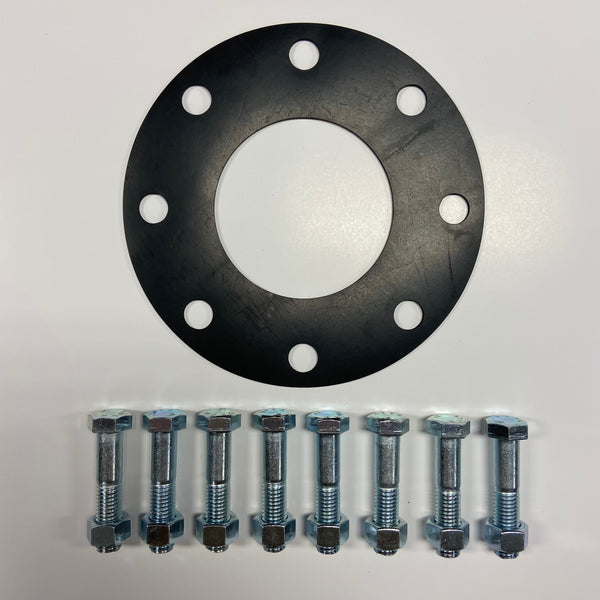

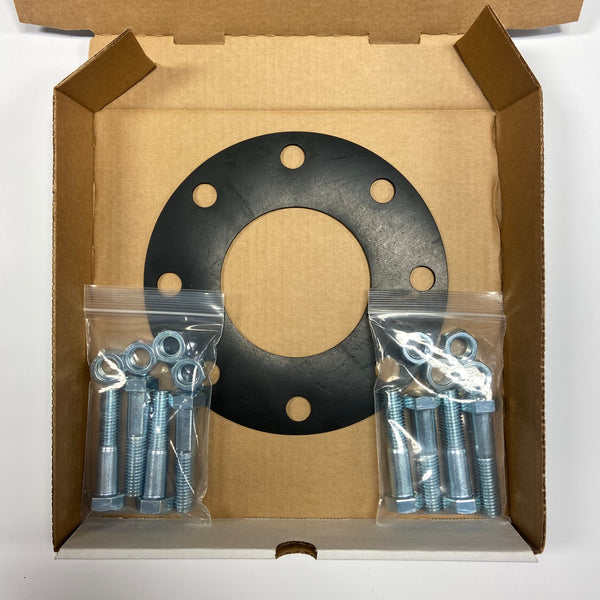

FLANGE KIT
NOMINAL PIPE SIZE: 4"
POUND CLASS: 150 LBS
GASKET: ANSI 4” 150# FULL-FACE 1/8” THICK 60 DURO EPDM SMOOTH FINISH MEETS ASME B16.21 FOR 150# GASKETS, DIMENSIONS ASME B16.5 9" OD x 4-1/2" ID - (8) 3/4" BH ON 7-1/2" BC
BOLTS: (8) 5/8”-11 X 3” MATERIAL ASTM A307 GRADE A HEX BOLTS ZINC PLATED GRADE 2 LOW CARBON STEEL, DIMENSIONS ASME B18.2.1, THREAD CLASS 2A MINIMUM TENSILE STRENGTH 60 KSI
NUTS: (8) 5/8”-11 MATERIAL GRADE 2 FINISHED HEX NUT ZINC PLATED GRADE 2 LOW CARBON STEEL DIMENSIONS ASME B18.2.2 THREAD CLASS 2A
