Flange Kit 3" Full Face 150# 1/16" Thick (SBR) Red Rubber Gasket & Bolt Pack

$14.47 $18.81

SKU: FK150FF3SBR.0625

Available Now!

Secure Payments

Bulk Packaging

Trusted Support

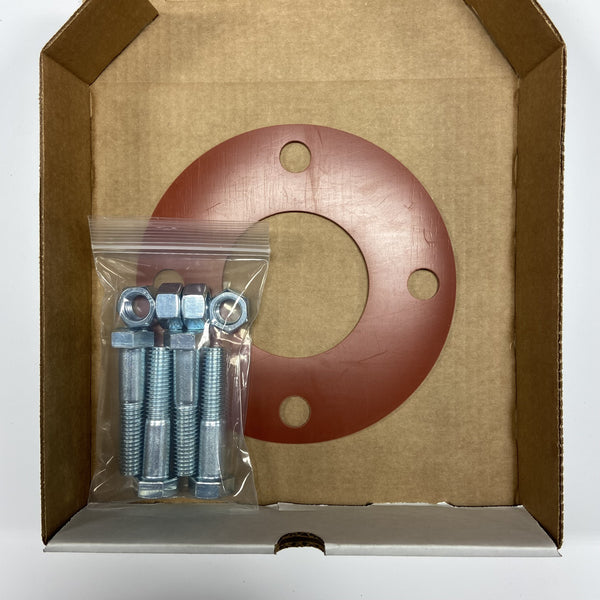

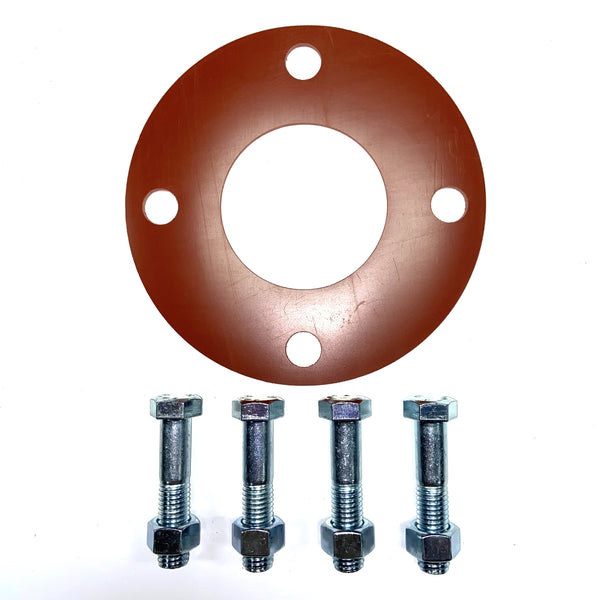

FLANGE KIT

NOMINAL PIPE SIZE: 3"

POUND CLASS: 150 LBS

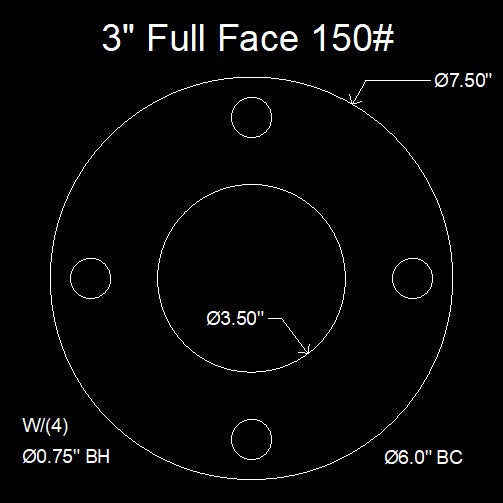

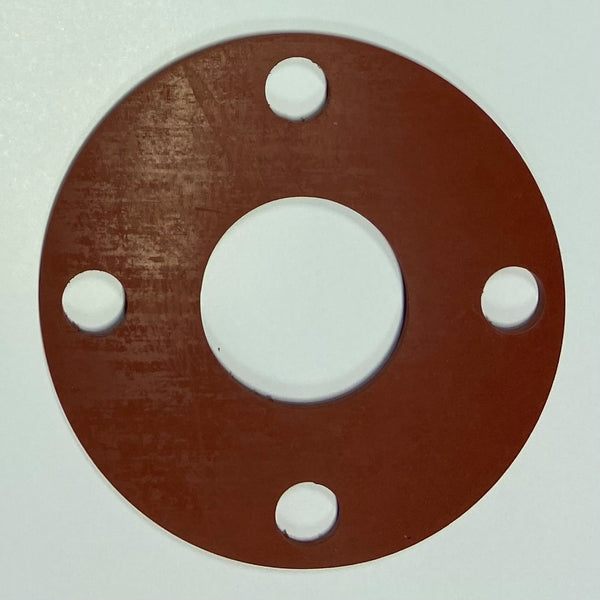

GASKET: ANSI 3” 150# FULL-FACE 1/16” THICK 75 DURO (SBR) RED RUBBER SMOOTH FINISH MEETS ASME B16.21 FOR 150# GASKETS, DIMENSIONS ASME B16.5 7-1/2" OD x 3-1/2" ID - (4) 3/4" BH ON 6" BC

BOLTS: (4) 5/8”-11 X 3” MATERIAL ASTM A307 GRADE A HEX BOLTS ZINC PLATED CARBON STEEL, DIMENSIONS ASME B18.2.1, THREAD CLASS 2A MINIMUM TENSILE STRENGTH 60 KSI

NUTS: (4) 5/8”-11 MATERIAL ASTM A563 GRADE 2 FINISHED HEX NUT ZINC PLATED CARBON STEEL DIMENSIONS ASME B18.2.2 THREAD CLASS 2B
