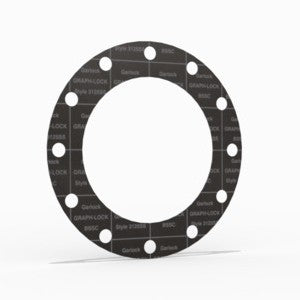

14" Full Face Flange Gasket (w/12 Bolt Holes) - 150 Lbs. - 1/8" Thick Garlock GRAPH-LOCK® Style 3125-SS Flexible Graphite Gasket 316SS Foil Version
$212.96 $255.55
SKU: ANSI FF14G3125SS.12
Secure Payments
Bulk Packaging
Trusted Support
Nominal Pipe Size: 14"
Pound Class: ASME B16.5 Class 150 Lbs.

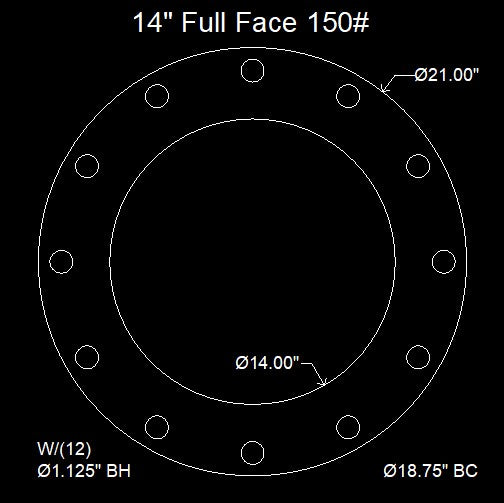

ANSI Standard Dimensions: 21" OD x 14" ID - (12) 1-1/8" BH on 18-3/4" BC
Garlock Part: 37740-7114
Thickness: 0.12" 3mm (1/8" Nominal)
Material: GRAPH-LOCK® Style 3125-SS Flexible Graphite Gasket Sheet, 316SS (Stainless Steel) Foil, Branded, 0.12 Inch
Composition: Graphite with 316SS Foil Insert
Compliances: REACH Compliant, RoHS Compliant
Temperature Range: -450°F - 850°F (-268°C - 454°C)
Color: Black
