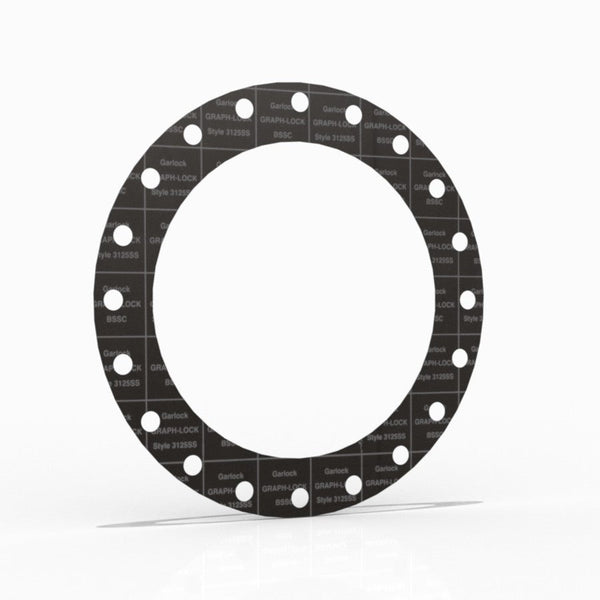

20" Full Face Flange Gasket (w/20 Bolt Holes) - 150 Lbs. - 1/8" Thick Garlock GRAPH-LOCK® Style 3125-SS Flexible Graphite Gasket 316SS Foil Version

$319.44 $383.32

SKU: ANSI FF20G3125SS.12

Available Now!

Secure Payments

Bulk Packaging

Trusted Support

Nominal Pipe Size: 20"

Pound Class: ASME B16.5 Class 150 Lbs.

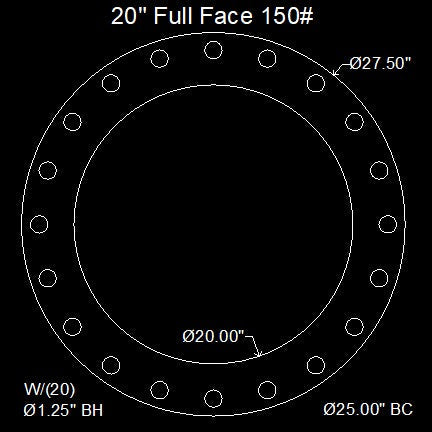

ANSI Standard Dimensions: 27-1/2" OD x 20" ID - (20) 1-1/4" BH on 25" BC

Garlock Part: 37740-7120

Thickness: 0.12" 3mm (1/8" Nominal)

Material: GRAPH-LOCK® Style 3125-SS Flexible Graphite Gasket Sheet, 316SS (Stainless Steel) Foil, Branded, 0.12 Inch

Composition: Graphite with 316SS Foil Insert

Compliances: REACH Compliant, RoHS Compliant

Temperature Range: -450°F - 850°F (-268°C - 454°C)

Color: Black
