Flange Kit 6" Full Face 150# 1/16" Thick Viton™ Gasket & Bolt Pack
$88.59
SKU: FK150FF6VA.0625
Secure Payments

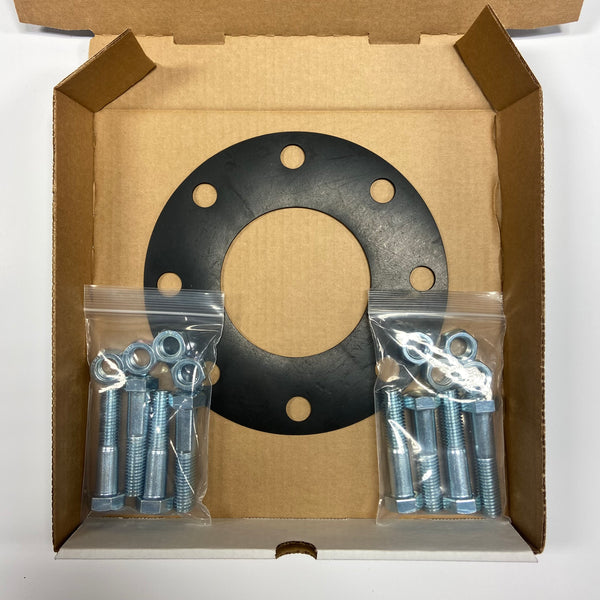

Bulk Packaging
Trusted Support

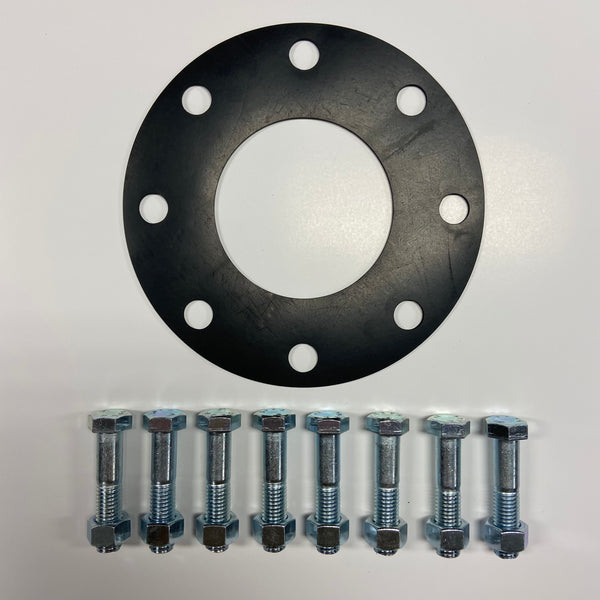

FLANGE KIT
NOMINAL PIPE SIZE: 6"
POUND CLASS: 150 LBS

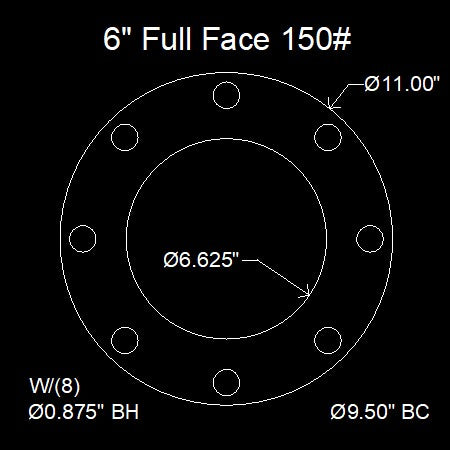

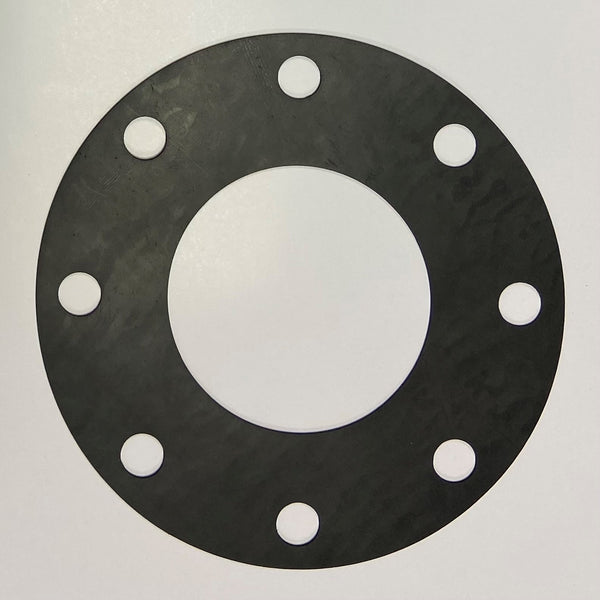

GASKET: ANSI 6” 150# FULL-FACE 1/16” THICK COMMERCIAL GRADE DUPONT VITON™ FLUOROESTASTOMER GRADE A - 66% FLUORINE MEETS ASME B16.21 FOR 150# GASKETS, DIMENSIONS ASME B16.5 11" OD x 6-5/8" ID - (8) 7/8" BH ON 9-1/2" BC
BOLTS: (8) 3/4”-10 X 3-1/4” MATERIAL ASTM A307 GRADE A HEX BOLTS ZINC PLATED CARBON STEEL, DIMENSIONS ASME B18.2.1, THREAD CLASS 2A MINIMUM TENSILE STRENGTH 60 KSI
NUTS: (8) 3/4”-10 MATERIAL ASTM A563 GRADE 2 FINISHED HEX NUT ZINC PLATED CARBON STEEL DIMENSIONS ASME B18.2.2 THREAD CLASS 2B
